【Characteristics】 |
 |
(1) |

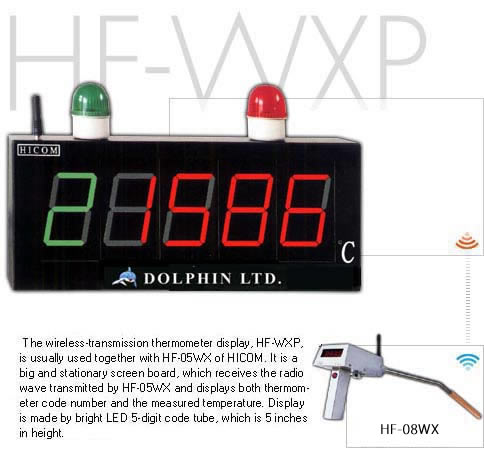

HF-WXP
is composed of power supply, receiving antenna,
A/D converter, two indicating lights, and a
bright 5-digit LED code tube of 5 inches in
height. The operator can easily read out the
measured temperature on the display screen board. |
(2) |
Within a distance of 100m, HF-WXP can receive
the thermometer code number and temperature
measured by HF-05WX. The data transmitted is
reliable, stable and clear. |
(3) |
HF-WXP is capable of receiving the measured
temperatures, which are transmitted from 10
different thermometers at different time. The
1digit of green code tube which will indicate
the thermometer code transmitted, and the following
red 4-digit will display the temperature measured
by the above mentioned thermometer code. |
(4) |
The
top of HF-WXP has the installation of green
and red indicators. When the green indicator
turns on, it is ready to receive signals from
various thermometers. However, when the red
indicator turns on, HF-WXP is too busy to receive.
Under such condition, mistakes by operators
can be fully prevented. After receiving transmitted
signals, the green indicator will turn off and
the red indicator will turn on. The red light
will stay on for 30 seconds. After 30 seconds,
the green indicator will turn on again. It means
that the HF-WXP is ready to receive the temperature
to be measured. |
【Specification】 |
 |
Model:
HF-WXP |
|
|
Transmission:
434.33 MHz |
|
|
Receive
Distance: ≤100 meters |
|
Display
Temperature: 0℃-1800℃ |
|
Voltage:
AC 200V-220V、50Hz-60Hz |
|
Display
Screen: 5 digit 5-inch high-light LED |
|
|
| | |
 |
