Instrument Specification
|
NAME
|

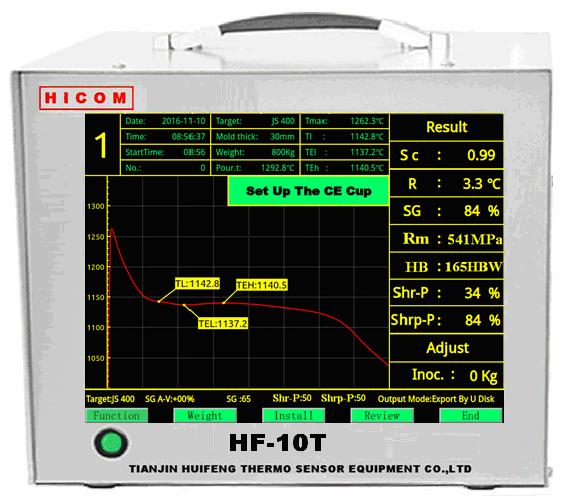

Molten iron quality control device |
Type
|
HF-10T |
Host computer
|
A5D3-HICOM
|
Work temperature
|
0~40℃ |
Indicator |
15 inches TFT screen
|
Work humidity
|
<80% |
Applied source |
AC 100/220V 50Hz/60Hz
|
Power consumption
|
300W |
Exiterior |
390(W)×340(H)×350(D)mm |
Weight |
18Kg |
Major Function
|
Survey function |
Carbon equivalent、content of activated carbon、content of activated silicon、carbon saturation degree、recalescence degree、Nodularity、Tensile strength、Tensile strength、Brinell hardness、Shrinkage probability、porosity probability |
Setting function
|
Set 8 lines, 8 target component、and run lines with targets material |
Count function
|
Calculate adjustment which need to contrast target component、molten iron weight and yiled based onmeasured result. |
Record function |
Ordered by measured time,can record 3000 times messured results, results can be reviewed |
Browse function
|

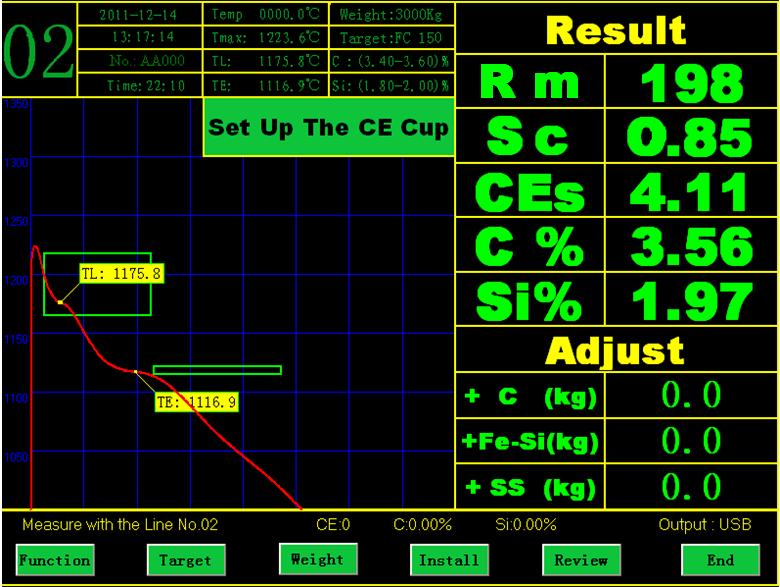

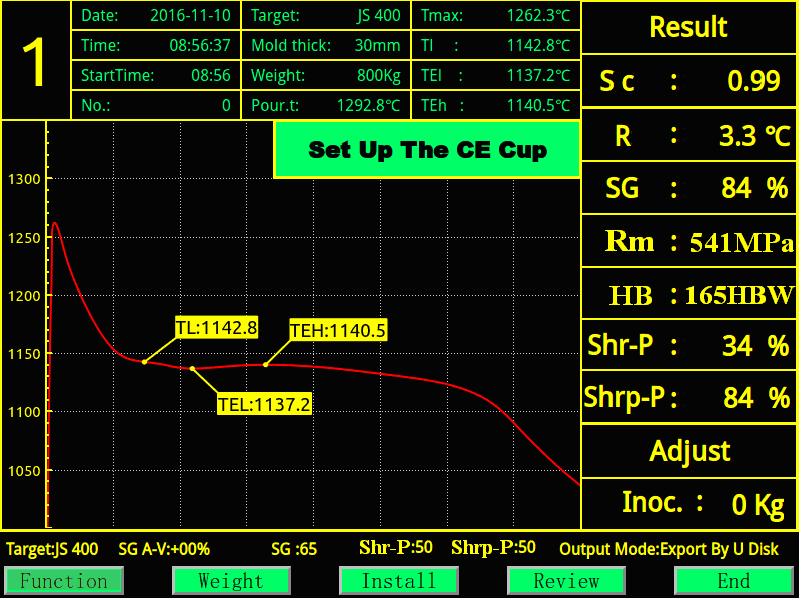

Browse distribution of main measured parameter、cooling temperature curve dirrerential chart |
Output function |
Use USB to move data to computer |
Assay Precision
|
Etermine Item |
Survey Range |
Survey Precision |
Rate Of Distinguish |
0.1℃( 0-1350℃)
|
0.1%F.S
|
Carbon equivalent
|
2.50% — 4.83%
|
±0.10% |
Content of activated carbon
|
2.30% — 4.20%
|
±0.05% |
Content of activated silicon
|
0.60% — 3.80%
|
±0.10% |
Nodularity
|
60% — 90% |
±10.0% |
Tensile strength
|
150 — 750MPa
|
±5.0% |
Brinell hardness |
100 — 300HBW |
±5.0% |
Shrinkage probability |
0.0% — 90.0% |
±5.0% |
Porosity probability |
0.0% — 90.0% |
±5.0% |
