Instrument Specification
|
Name
|

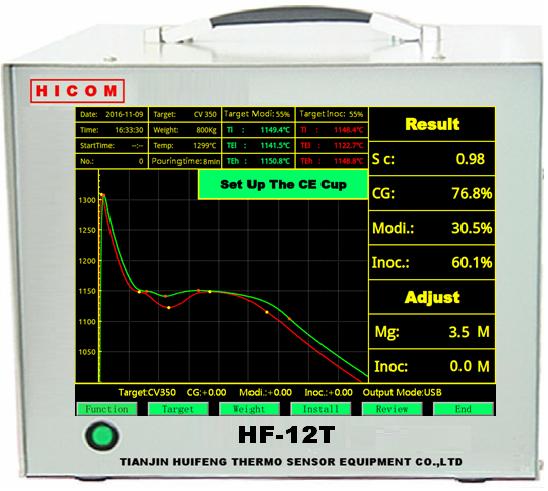

Table type molten iron quality control device at furnace |
Type
|
HF£12T |
Host Computer
|
A5D3-HICOM
|
Work Temperature
|
0¡«50¡æ |
Indicator
|
15 inches TFT screen
|
Work Humidity
|
£¼85£¥ |
Applied Source
|
AC 100/220V 50Hz£¯60Hz
|
Power Consumption
|
300W |
Exterior |
390£¨W£©X340£¨H£©X350£¨D£©mm |
Weight |
18 Kg |
Major Function
|
Survey Function |
Carbon equivalent¡¢content of activated carbon¡¢content of activated silicon¡¢carbon saturation degree¡¢degree of recalescence¡¢Vermicularity¡¢Modification¡¢Inoculation |
Setting Function
|
Set 8 lines and 8 target component in both gray iron and ductile iron,and run lines with target material |
Count Function
|
Calculate adjustment which need to contrast target component¡¢molten iron weight and yield based on measured result |
Record Function |
Ordered by measured time,can record 3000 times measured results,results can be reviewed |
Glance Over Function
|

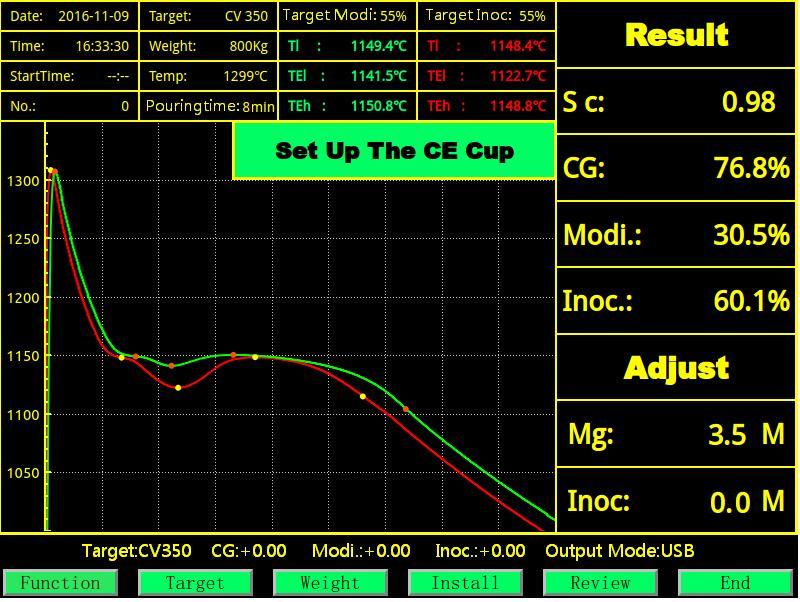

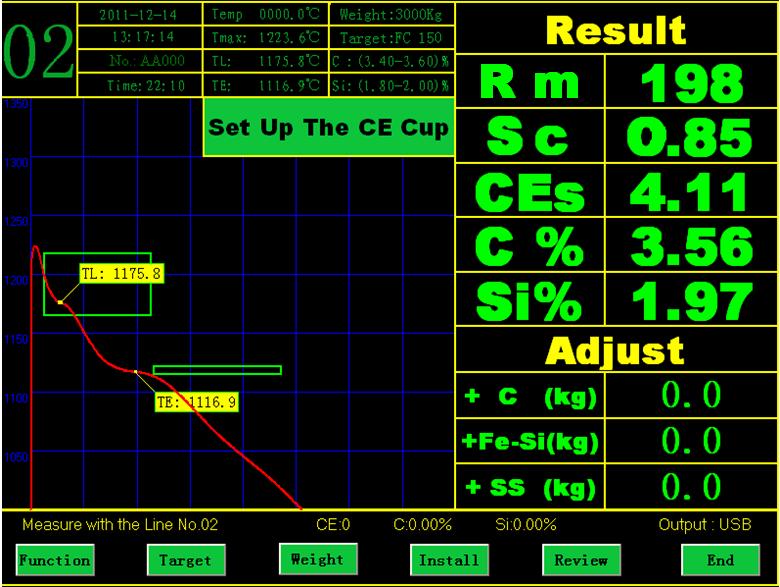

Browse distruibution of main measured parameter¡¢cooling temperature curve differential chart |
Export Function
|
Use USB to move data to computer |
Assay Precison
|
Determine |
Survey Range |
Survey Precision
|
Rate Of Distinguish |
0.1¡æ(0£1350¡æ)
|
0.05£¥F.S
|
Carbon equivalent
|
2.50% — 4.83%
|
¡À0.02£¥ |
Carbon |
2.30% — 4.20% |
¡À0.01£¥ |
Silicon |
0.50% — 3.80% |
¡À0.02£¥ |
Carbon saturation degree
|
0.00 - 1.00
|
1 £¥F.S |
Recalescence degree |
0.0 - 50.0¡æ |
0.1¡æ |
Vermicularity |
10.0£¥£9.0£¥
|
¡À10.0£¥ |
Modification |
20.0£¥£60.0£¥
|
¡À10.0£¥ |
Inoculation |
20.0£¥£60.0£¥ |
¡À10.0£¥ |
