Instrument Specification
|
NAME
|
Table type molten iron quality control device at furnace |
Type
|
HF-02T |
Host computer
|
A5D3-HICOM
|
Work temperature
|
0~50℃ |
Indicator |
15 inches TFT screen
|
Work humidity
|
<85% |
Applied source |
AC 100/220V 50Hz/60Hz
|
Power consumption
|
300W |
Exiterior |
390(W)×340(H)×350(D)mm |
Weight |
18Kg |
Major Function
|
Survey function |
Carbon equivalent、content of activated carbon、content of activated silicon、carbon saturation degree、degree of recalescence、nodularity |
Setting function
|
Set 8 lines and 8 target component in both gray iron and ductile iron,and run lines with target material |
Count function
|
Calculate adjustment which need to contrast target component、molten iron weight and yield based on measured result |
Record function |
Ordered by measured time,can record 3000 times measured results,results can be reviewed |
Browse function
|

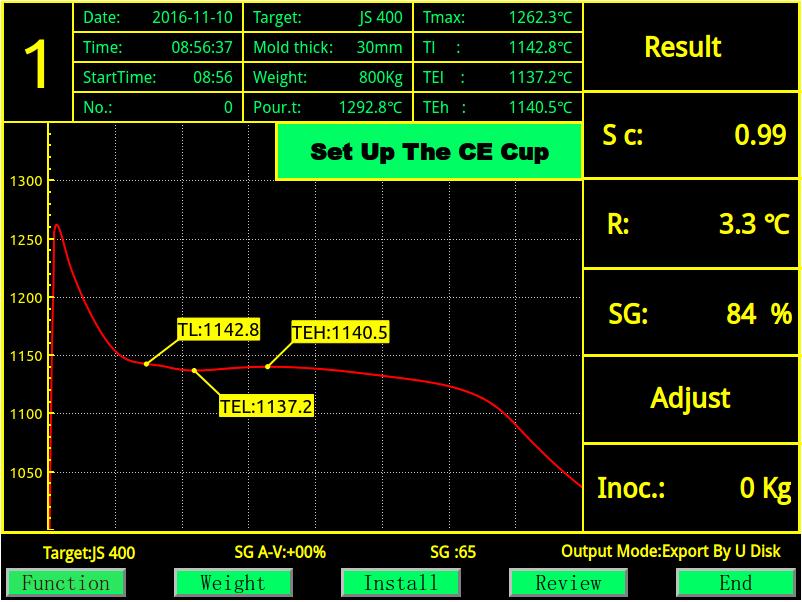

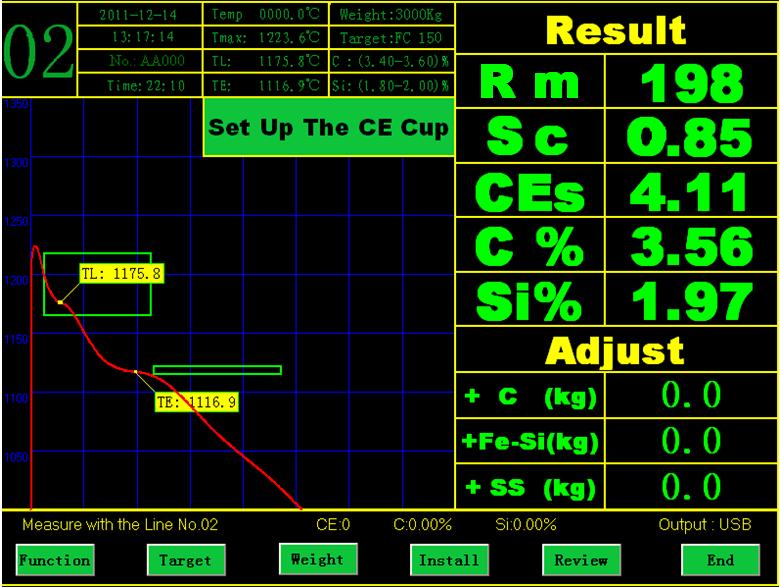

Browse distruibution of main measured parameter、cooling temperature curve differential chart |
Output function |
Use USB to move data to computer |
Assay Precision
|
Etermine Item |
Survey Range |
Survey Precision |
Rate Of Distinguish |
0.1℃( 0-1350℃)
|
0.1%F.S
|
SC
|
0 -1
|
±0.02% |
CE
|
2.50%-4.83%
|
±0.10% |
C
|
2.30%-4.20%
|
±0.05% |
Si
|
0.60%-3.80% |
±0.10% |
SG
|
60%-95%
|
±10.0% |
R |
TEL -TEh |
±0.2℃ |
