WIRELESS PRINTER

Characteristics

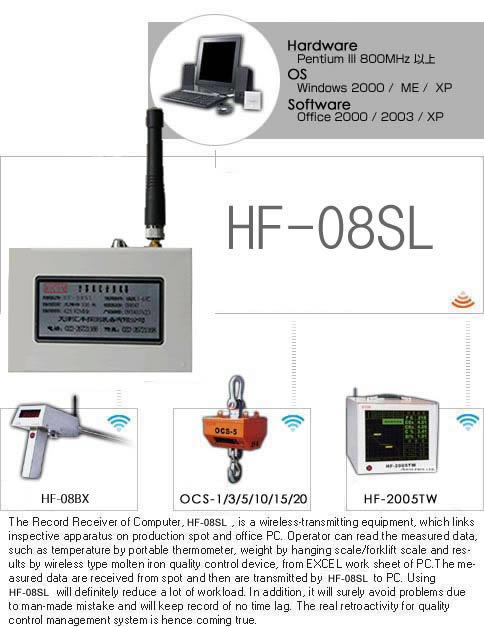

(1) The serial measuring devices with wireless-transmitting function made by HICOM will upgarade customer’s QC management technology. The receiving distance of HF-08SL will depend on the emissive power of wireless transmitting apparatus. The measuring devices with effectively transmit distance of 100m,300m and 500m under the circumstance of no obstacles existance.
(2) The allocation of PC is shown as follow: Hardware: PIV above PC, USB 1 free;Software: operating system support software Windows XP /OfficeXP/Office2003.
(3) After the installation of software of HF-08SL on the EXCEL work sheet, the operator is able to have statistical calculation for QC, cost and so on.
(4) The HF-08SL can receive signal from 8 channels. Every channel allows 9 apparatuses to work together.Once data is received, the record with date and time in the EXCEL work sheet are added automatically. When the record is deleted or modified by non authorized operator, the data will recover automatically to the original one in the EXCEL work sheet when you open the record in the PC next time.
Specification
Frequency: 434.33MHz
Computer: PIV above PC
Serial Communication:USB 1 free(V1.1 above)
Operation System: Windows XP;office XP;office 2003
